- Country
- United States of America (USA)
- Manufacturer / Brand
- Apex Electric, Pool; Chicago; US Radio & Television Corp.; Marion; (US Radio&Refrigeration)
- Year
- 1931 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 160012
-
- alternative name: Apex Electric Mfg. || Case Electric || Melrose || United States Radio & T

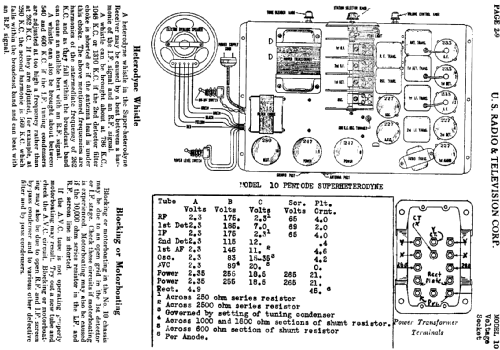

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 262 kHz; Screengrid 1926-1935
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 10-X - Apex Electric, Pool; Chicago;
- Notes
- Push-pull af output stage; almost identical with model 10 (60 cycle).
- Circuit diagram reference
- Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
- Other Models
-
Here you find 226 models, 89 with images and 130 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Apex Electric, Pool; Chicago; US Radio & Television Corp.; Marion; (US Radio&Refrigeration)
