• Country
• United States of America (USA)

• Manufacturer / Brand
• Apex Electric, Pool; Chicago; US Radio & Television Corp.; Marion; (US Radio&Refrigeration)

• Year
• 1931 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 63781

• • alternative name: Apex Electric Mfg. || Case Electric || Melrose || United States Radio & T

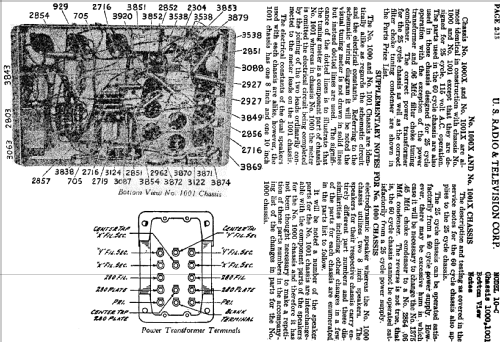

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 35 35 35 27 35 27 27 47 47 80

• Main principle
• Superhet with RF-stage; Screengrid 1926-1935

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

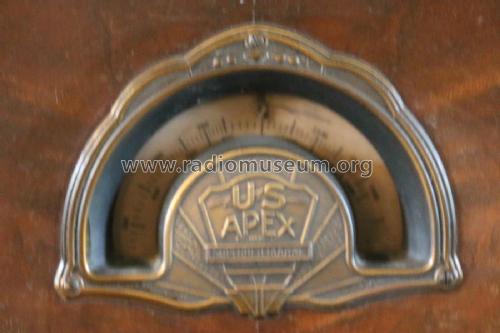

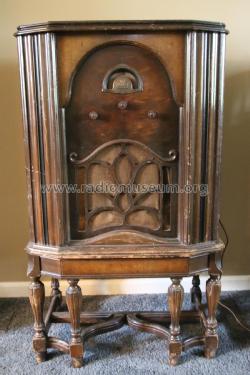

• Model: 10-C Ch= 1000, 1001 - Apex Electric, Pool; Chicago;

• Shape
• Console with any shape - in general

• Notes
• Chassis "1000" and "1001" (60 cycle) are almost identical with chassis "1000-X" and "1001-X" (25 cycle); push-pull af output stage; chassis "1000" has two 8" speakers, chassis "1001" has one 12" and one 8" speaker.

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)

• Other Models

• Here you find 218 models, 88 with images and 122 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Apex Electric, Pool; Chicago; US Radio & Television Corp.; Marion; (US Radio&Refrigeration)
