• Country
• United States of America (USA)

• Manufacturer / Brand
• Apex Electric, Pool; Chicago; US Radio & Television Corp.; Marion; (US Radio&Refrigeration)

• Year
• 1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 63848

• • alternative name: Apex Electric Mfg. || Case Electric || Melrose || United States Radio & T

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

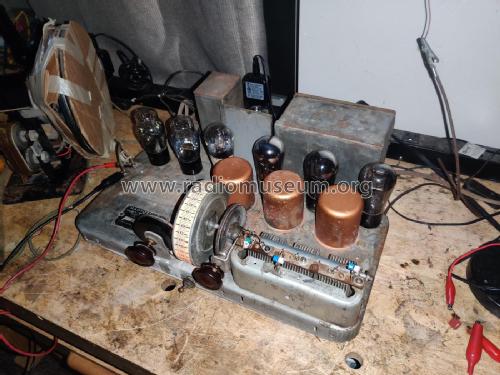

• 26 26 26 27 26 71A 80

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Material
• Wooden case

• from Radiomuseum.org
• Model: Apex 37 - Apex Electric, Pool; Chicago;

• Shape
• Console with any shape - in general

• Notes

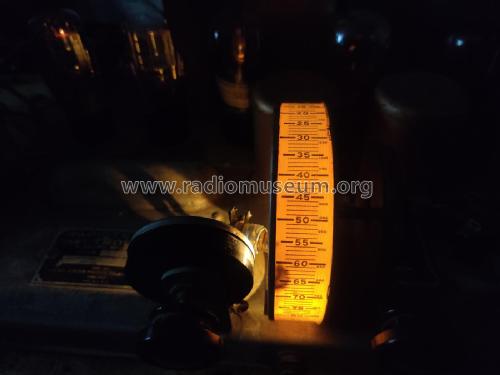

• One dial (primary tuning control knob)

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965
