- Country
- United States of America (USA)
- Manufacturer / Brand
- Apex Electric, Pool; Chicago; US Radio & Television Corp.; Marion; (US Radio&Refrigeration)
- Year
- 1925/1926
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 176984
-
- alternative name: Apex Electric Mfg. || Case Electric || Melrose || United States Radio & T

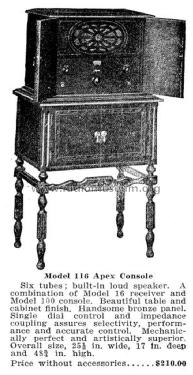

Apex 116 (original prospect, own scan)
- Number of Tubes
- 6
- Valves / Tubes
- Main principle
- TRF without regeneration
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- Horn
- Material
- Wooden case
- from Radiomuseum.org
- Model: Apex 116 - Apex Electric, Pool; Chicago;
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 25.5 x 48.75 x 17 inch / 648 x 1238 x 432 mm
- Notes
-
Six tubes. Built-in speaker. Combination of model 16 with model 100 console. Single wavelength dial.
- Price in first year of sale
- 210.00 $
- Source of data
- - - Manufacturers Literature
- Mentioned in
- Radio Manufacturers of the 1920s, Vol 1
- Literature/Schematics (1)
- Aug.1925 McGraw-Hill Radio Trade Directory, p.110
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
