- Country
- United States of America (USA)
- Manufacturer / Brand
- Apex Electric, Pool; Chicago; US Radio & Television Corp.; Marion; (US Radio&Refrigeration)
- Year
- 1933 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 150787
-
- alternative name: Apex Electric Mfg. || Case Electric || Melrose || United States Radio & T
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
- Material
- Wooden case
- from Radiomuseum.org

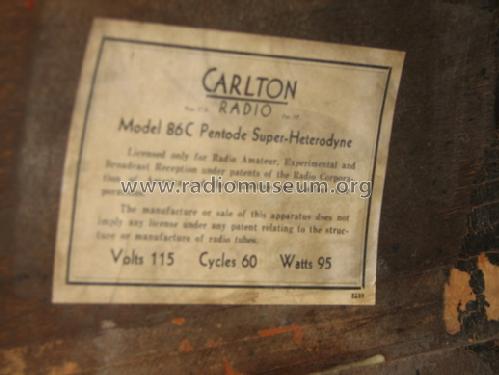

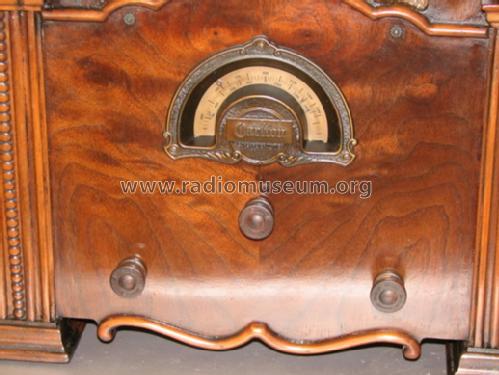

- Model: Carlton 86C - Apex Electric, Pool; Chicago;
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 400 x 455 x 290 mm / 15.7 x 17.9 x 11.4 inch
- Net weight (2.2 lb = 1 kg)
- 13.1 kg / 28 lb 13.7 oz (28.855 lb)
- Author
- Model page created by Norbert Konersmann. See "Data change" for further contributors.
