• Country
• United States of America (USA)

• Manufacturer / Brand
• Valiant Watch Ltd.; New York (NY)

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 294429

• Number of Transistors
• 6

• Semiconductors
• 2SA101 2SA101 2SA101 2SB171 2SB172 2SB172

• Main principle
• Superheterodyne (common); 5 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Is a battery or storage battery / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

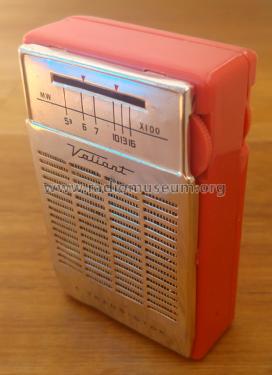

• Model: Valiant 6 Transistor - Valiant Watch Ltd.; New York

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 55 x 90 x 28 mm / 2.2 x 3.5 x 1.1 inch

• Notes

• Small pocket radio

  Made in Japan

• Author
• Model page created by Evgeny Mandel. See "Data change" for further contributors.
