Atlas 5PT-S7
Vanguard; Hospitalet de Llobregat
- Country
- Spain
- Manufacturer / Brand
- Vanguard; Hospitalet de Llobregat
- Year
- 1961 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 321530
-
- alternative name: Cahué Industrial

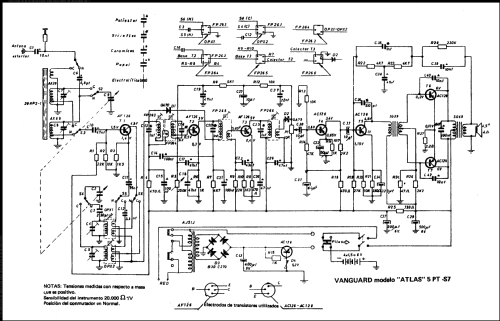

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Line / Batteries (any type) / 125; 220 / 4 x 1,5 Volt
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Atlas 5PT-S7 - Vanguard; Hospitalet de
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
Vanguard (Cahué Industrial, S.A.), Atlas 5PT-S7
Séptima variación del modelo Atlas 5PT, con entrada 125/220 y estabilización de la tensión rectificada.
Véanse modelos con caja similar:
- Sony Corporation Handy Personal All Transistor (Sólo OM)
- Sony Corporation 2 Band Seven Transistor TR-712-B (OM-OC)
- Vanguard Atlas 5PT-S5 (OM-OC)
- Vanguard Atlas 5PT-S6 (OM-OC)
- Vanguard Atlas 5PT-200 (OM-OC)
- Vanguard Super Atlas 68PT-S1 (OM-OC)
- Vanguard Atlas FM-OL 34PT-S4 (OM-OL-FM)
- Vanguard Atlas FM-OC 34PT-S4 (OM-OC-FM con AC128)
- Vanguard Atlas FM-OC 34PT-S4 (OM-OC-FM con AC188)
- Vanguard Super Atlas FM 80PT-S3 (OM-OC-FM)
