• Country
• Spain

• Manufacturer / Brand
• Vanguard; Hospitalet de Llobregat

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 203609

• • alternative name: Cahué Industrial

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• SF115 SF115 SF115 2N4286 AC128 AC128 SFD107

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 2x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

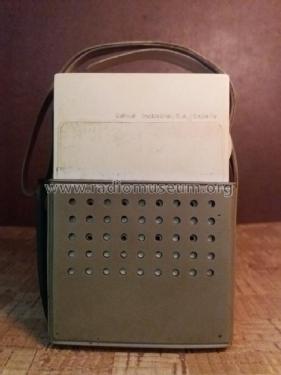

• Model: Mini Samos 50 PT - Vanguard; Hospitalet de

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 60 x 100 x 27 mm / 2.4 x 3.9 x 1.1 inch

• Net weight (2.2 lb = 1 kg)
• 0.130 kg / 0 lb 4.6 oz (0.286 lb)

• Price in first year of sale
• 800.00 Pesetas

• Source of data
• -- Schematic

• Author
• Model page created by Jose Mayoral-Diaz. See "Data change" for further contributors.

• Other Models

• Here you find 142 models, 92 with images and 123 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Vanguard; Hospitalet de Llobregat
