• Country
• Spain

• Manufacturer / Brand
• Vanguard; Hospitalet de Llobregat

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 316104

• • alternative name: Cahué Industrial

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 21

• Semiconductors
• BF195 BF194 BC148 BC149 BC147 MC250 BD161 BD132 MC260 AC188 MC140 ULN2111A BB100 SFD112 SFD107 SD530 SD560 H110 SZ6

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

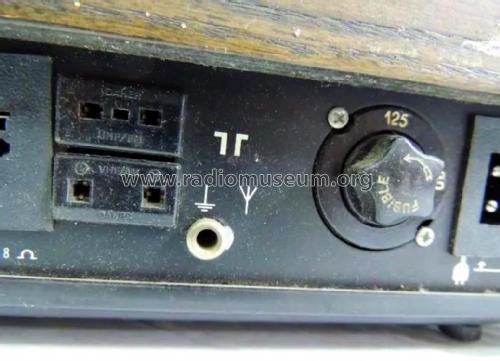

• Power type and voltage
• Alternating Current supply (AC) / 125-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 16 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

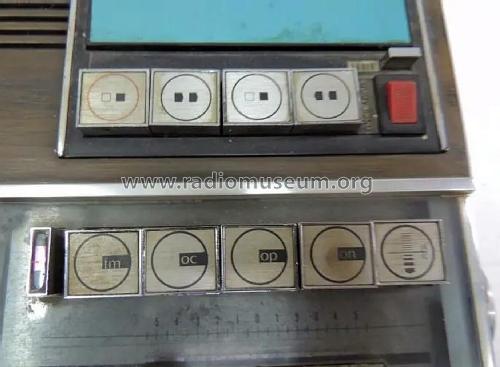

• Model: Navigator 57T - Vanguard; Hospitalet de

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 390 x 260 x 80 mm / 15.4 x 10.2 x 3.1 inch

• Notes

• Vanguard Radio Cassette Estéreo Navigator 57-T

  Contiene un circuito integrado ULN 2111, que hace la función de detector y preamplificador de FM.

  Listado un único semiconductor por tipo.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

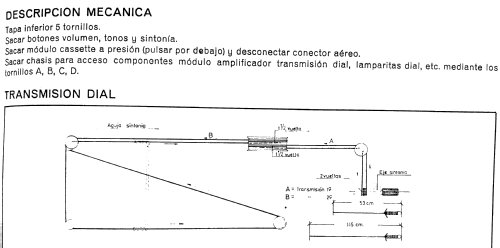

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
