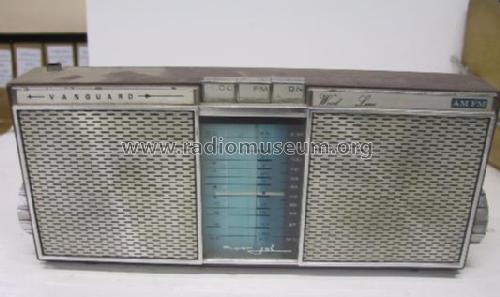

Super Jet 40PT-S4
Vanguard; Hospitalet de Llobregat
- Country
- Spain
- Manufacturer / Brand
- Vanguard; Hospitalet de Llobregat
- Year
- 1965 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 111029
-
- alternative name: Cahué Industrial

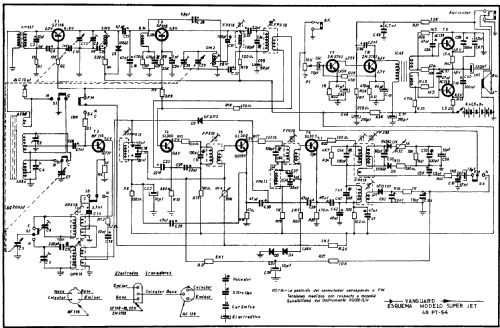

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Semiconductors
- SF115 SF115 BF115 SL300_Trans SL300_Trans SL300_Trans 2N3793 2N3793 AC139 AC139 SFD107 SFD112 1N542 1N542 1N542
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 6 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Super Jet 40PT-S4 - Vanguard; Hospitalet de
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
