• Country
• Italy

• Manufacturer / Brand
• Vara; Torino

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 87698

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6Q7 6V6 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 467 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

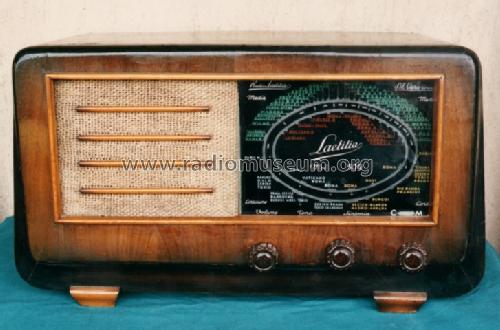

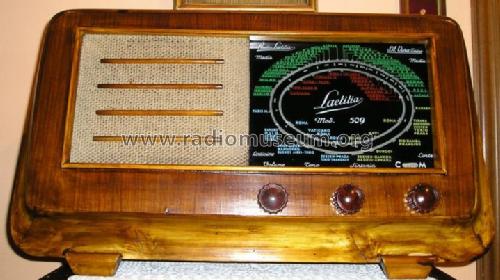

• Model: Laetitia 509 - Vara; Torino

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 330 x 250 mm / 23.6 x 13 x 9.8 inch

• Notes

• Simile al modello 509.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Source of data
• Guida Pratica Antique Radio III (2000)

• Literature/Schematics (1)
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 363)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
