Fernsehsignalgenerator FSG-1
Messelektronik Berlin, VEB, RFT (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- Messelektronik Berlin, VEB, RFT (Ostd.)
- Year
- 1963
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 112575

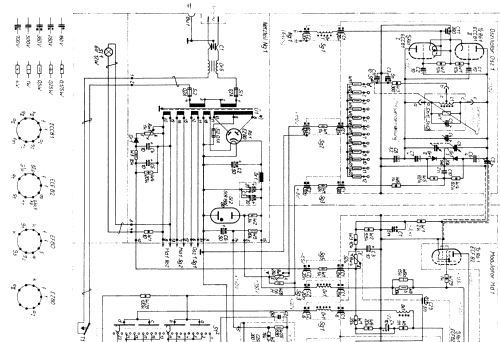

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 100-125; 200-250 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Fernsehsignalgenerator FSG-1 - Messelektronik Berlin, VEB,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 405 x 292 x 258 mm / 15.9 x 11.5 x 10.2 inch
- Notes
- Dioden: 2× OA646. Der FSG1 liefert eine von 5 - 235 MHz, zwischen 50 mV und 10 µV einstellbare, in Amplitude bzw. Frequenz modulierbare Spannung.
- Net weight (2.2 lb = 1 kg)
- 11.5 kg / 25 lb 5.3 oz (25.33 lb)
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Ulrich Ferchland. See "Data change" for further contributors.
