• Country
• Canada

• Manufacturer / Brand
• Vectronics Corporation Inc.; Scarborough, ON

• Year
• 1990 ??

• Category
• RF (Radio Frequency-) Amplifier

• Radiomuseum.org ID
• 352439

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 811A 811A 811A 811A

• Main principle
• Radio Frequency Amplification only

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Alternating Current supply (AC) / 115; 220; 230; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

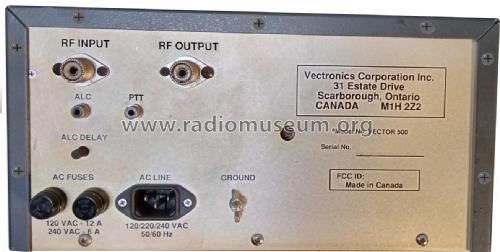

• Model: Vector 500 811A, HF Linear Amplifier - Vectronics Corporation Inc.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 300 x 150 x 300 mm / 11.8 x 5.9 x 11.8 inch

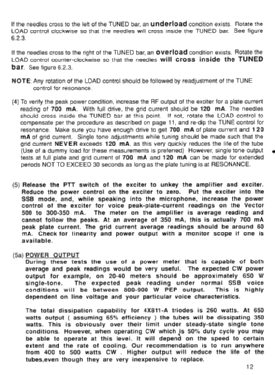

• Notes

• Frequencyrange International Model:
  160-a meters    1.8 to 1.9 MHz
  160-b meters    1.9 to 2.0 MHz
  80 meters    3.5 to 4.0 MHz
  40 meters    7.0 to 7.3 MHz
  30 meters    10.1 to 10.15 MHz  (Only Model)
  20 meters    14.0 to 14.35 MHz
  17 meters    18.068 to 18.168 MHz
  15 meters    21.0 to 21.45 MHz
  12 meters    24.85 to 24.95 MHz (USA NO)
  12 meters    28.0 to 29.7 MHz     (USA NO)

  Drive Power  50-70 W; 600 W ouput aprox
  RF inpuT power  Continuous SSB 1 kW PEP, CW 50% duty cycle
  PLATE VOLTAGE  1700 VDC
  Effiency 60-65%
  Impededance  in 50 Ω out 50 Ω
  HARMONIC SUPPRESSION -40 dB
  INTERMOD. DISTORTION  -32 dB
  Class AB2 grounded grid
  50 /60 Hz dual primaries

• Net weight (2.2 lb = 1 kg)
• 10.9 kg / 24 lb 0.1 oz (24.009 lb)

• Author
• Model page created by Rafael Hernandez Fuentes. See "Data change" for further contributors.
