• Country
• Latvia (Latvia, Riga)

• Manufacturer / Brand
• VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77649

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6А7 6К3 6Х6С 6Ж8 6Е5С 6П6С 5Ц4С

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

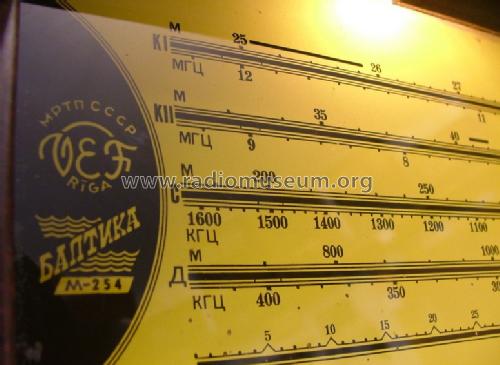

• Model: Baltika - Балтика M-254 - VEF Radio Works Valst

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 500 x 360 x 280 mm / 19.7 x 14.2 x 11 inch

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Source of data
• -- Schematic

• Author
• Model page created by Nikolaj Baranov. See "Data change" for further contributors.

• Other Models

• Here you find 139 models, 136 with images and 76 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
