• Country
• Latvia (Latvia, Riga)

• Manufacturer / Brand
• VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

• Year
• 1961 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77867

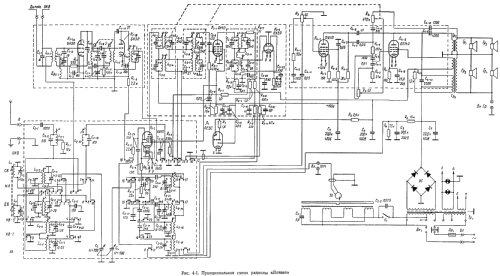

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6Н3П 6И1П 6К4П 6Х2П 6Е5С 6Ж1П 6П14П

• Main principle
• Superheterodyne (common); ZF/IF 465/8400 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

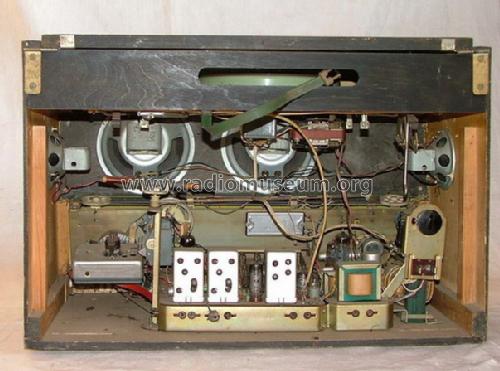

• Model: Latvija M RN59 [radiogramophone] - VEF Radio Works Valst

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 590 x 420 x 360 mm / 23.2 x 16.5 x 14.2 inch

• Notes
• FM range 65,8 - 73 Mhz (4,56 - 4,11 m). Loudspeaker 2 x 1 Watt, 2 x 2 Watts.

• Net weight (2.2 lb = 1 kg)
• 20.5 kg / 45 lb 2.5 oz (45.154 lb)

• Mentioned in
• E.A.Levitin "Radiovecsiatelnyje prijomniki" Moscow 1967

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
