Lautsprecherchassis 1ГД-48-120 [1GD-48-120]

VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

Data
Forum
Pictures
Collections

  • Year
  • 1980
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 276854

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Lautsprecherchassis 1ГД-48-120 [1GD-48-120] - VEF Radio Works Valst
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 160 x 100 x 60 mm / 6.3 x 3.9 x 2.4 inch
  • Notes

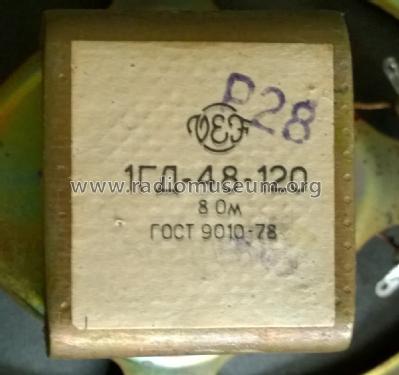

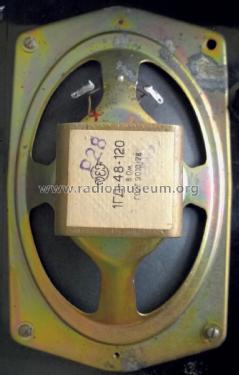

  • Ovales Breitband-Lautsprecherchassis; Impedanz: 8 Ω; Korb: offen, Stahlblech mit 4 Befestigungslöchern.

  • Net weight (2.2 lb = 1 kg)
  • 0.304 kg / 0 lb 10.7 oz (0.67 lb)
  • Author
  • Model page created by Michael Mischke. See "Data change" for further contributors.
