MIR (Мир) M-152

• Country
• Latvia (Latvia, Riga)

• Manufacturer / Brand
• VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

• Year
• 1952 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72631

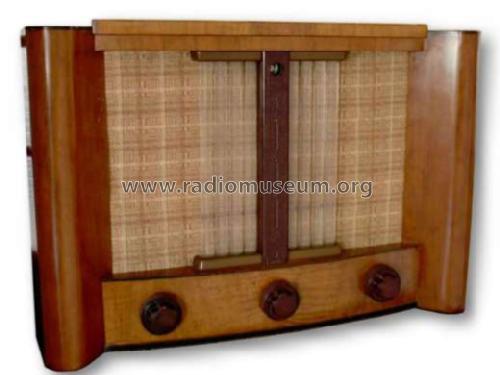

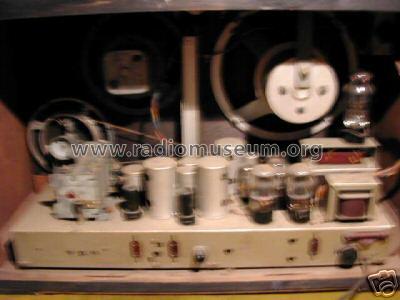

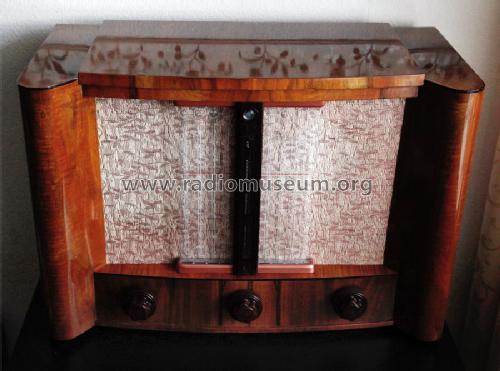

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• 6К3 6A7 6A7 6К3 6Е5С 6К3 6Х6С 6Н8С 6Н8С 6П3С 6П3С 6Г2 5Ц3С

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: MIR M-152 - VEF Radio Works Valst

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 720 x 490 x 370 mm / 28.3 x 19.3 x 14.6 inch

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• Mentioned in
• -- Collector info (Sammler) (Past Soviet Union magazine RADIO Nr.5 , 8 - 1953)

• Literature/Schematics (1)
• -- Collector info (Sammler)

• Author
• Model page created by a member from D. See "Data change" for further contributors.
