• Country
• Latvia (Latvia, Riga)

• Manufacturer / Brand
• VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

• Year
• 1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 96887

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Dry Batteries / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.7 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

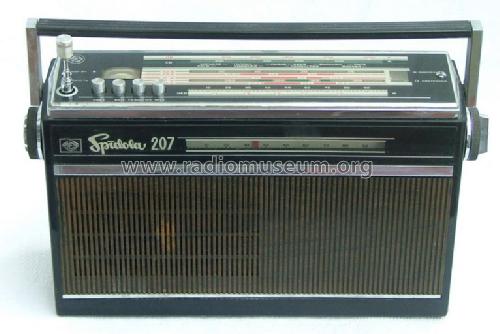

• Model: Spidola 207 - VEF Radio Works Valst

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 365 x 250 x 100 mm / 14.4 x 9.8 x 3.9 inch

• Notes
• Same as model Spidola 208, but without tunning indicator. Coverage MW, LW, 5 SW bands and FM.
  AC 220 V separate supply block possible.

• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
