Vefsuper M517 E series P8A tubes

VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

Data

Forum

Pictures

Collections

Country
Latvia (Latvia, Riga)

Manufacturer / Brand
VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

Year
1940

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
92770

Schematics

Vefsuper M517; VEF Radio Works (ID = 257427) Radio — VEF Radio Works Vefsuper M517 (1)
Lithuania Kaunas

Vefsuper M517; VEF Radio Works (ID = 257432) Radio — VEF Radio Works Vefsuper M517 (1)
Lithuania Kaunas

Vefsuper M517; VEF Radio Works (ID = 257430) Radio — VEF Radio Works Vefsuper M517 (1)
Lithuania Kaunas

Vefsuper M517; VEF Radio Works (ID = 257428) Radio — VEF Radio Works Vefsuper M517 (1)
Lithuania Kaunas

Vefsuper M517; VEF Radio Works (ID = 257429) Radio — VEF Radio Works Vefsuper M517 (1)
Lithuania Kaunas

Vefsuper M517; VEF Radio Works (ID = 257433) Radio — VEF Radio Works Vefsuper M517 (1)
Lithuania Kaunas

Vefsuper M517; VEF Radio Works (ID = 257434) Radio — VEF Radio Works Vefsuper M517 (1)
Lithuania Kaunas

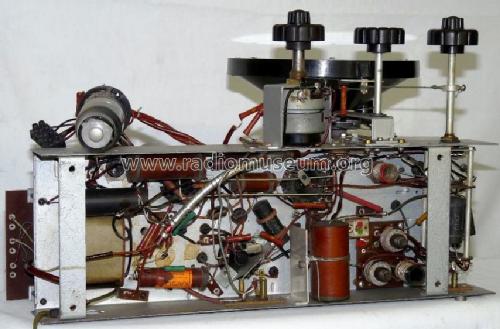

Vefsuper M517; VEF Radio Works (ID = 662509) Radio — VEF Radio Works Vefsuper M517 (1)

Vefsuper M517; VEF Radio Works (ID = 662510) Radio — VEF Radio Works Vefsuper M517 (1)

Vefsuper M517; VEF Radio Works (ID = 662511) Radio — VEF Radio Works Vefsuper M517 (1)

Vefsuper M517; VEF Radio Works (ID = 662512) Radio — VEF Radio Works Vefsuper M517 (1)

Vefsuper M517; VEF Radio Works (ID = 662513) Radio — VEF Radio Works Vefsuper M517 (1)

Vefsuper M517; VEF Radio Works (ID = 662514) Radio — VEF Radio Works Vefsuper M517 (1)

Vefsuper M517; VEF Radio Works (ID = 662515) Radio — VEF Radio Works Vefsuper M517 (1)

Vefsuper M517; VEF Radio Works (ID = 662516) Radio — VEF Radio Works Vefsuper M517 (1)

Vefsuper M517; VEF Radio Works (ID = 1382668) Radio — VEF Radio Works Vefsuper M517 (1)

Technical Specifications

Number of Tubes
5

Valves / Tubes
EK2 EBF2 EL3N AZ1 EFM1

Main principle
Superheterodyne (common); ZF/IF 128 kHz

Tuned circuits
7 AM circuit(s)

Wave bands
Broadcast, Long Wave and Short Wave.

Power type and voltage
Alternating Current supply (AC) / 120/220 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch

Power out
2.5 W (unknown quality)

Material
Wooden case

from Radiomuseum.org
Model: Vefsuper M517 [E series P8A tubes] - VEF Radio Works Valst

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
480 x 310 x 235 mm / 18.9 x 12.2 x 9.3 inch

Notes
The basic variant of development of 1939-40.

See also the VEF Vefsuper M517 with Russian Octal tubes and E11er Steel tubes (Stahlröhre).

Net weight (2.2 lb = 1 kg)
8.5 kg / 18 lb 11.6 oz (18.722 lb)
