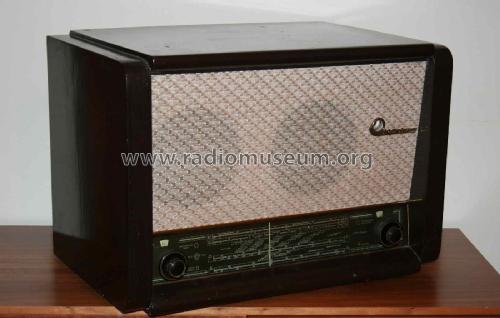

VEF Akkord, ВЭФ Аккорд M-255 - М-255

• Country
• Latvia (Latvia, Riga)

• Manufacturer / Brand
• VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

• Year
• 1953–1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77853

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6А7 6К3 6Х6С 6Ж8 6Е5С 6П6С 5Ц4С

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110,127, 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: VEF Akkord, ВЭФ Аккорд M-255 - М-255 - VEF Radio Works Valst

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 590 x 410 x 340 mm / 23.2 x 16.1 x 13.4 inch

• Notes
• VEF Akkord, ВЭФ Аккорд;

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

• Author
• Model page created by Nikolaj Baranov. See "Data change" for further contributors.
