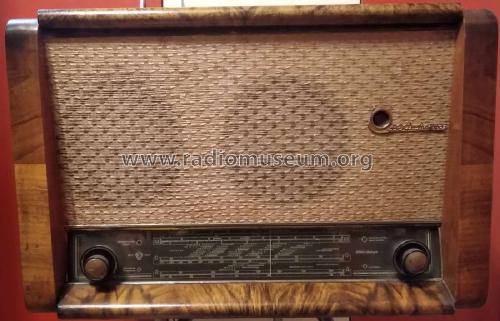

VEF Akkord, ВЭФ Аккорд M-255R ("M-255P") Radiola

• Country
• Latvia (Latvia, Riga)

• Manufacturer / Brand
• VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

• Year
• 1954–1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75422

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6А7 6К3 6Х6С 6Ж8 6Е5С 6П6С 5Ц4С

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 10 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 17 cm = 6.7 inch

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: VEF Akkord, ВЭФ Аккорд M-255R Radiola - VEF Radio Works Valst

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 590 x 410 x 340 mm / 23.2 x 16.1 x 13.4 inch

• Notes
• Record player for 33 and 78 rpm.

• Net weight (2.2 lb = 1 kg)
• 23 kg / 50 lb 10.6 oz (50.661 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
