VEF Spidola 10

VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

Data

Forum

Pictures

Collections

Country
Latvia (Latvia, Riga)

Manufacturer / Brand
VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

Year
1966

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
77657

Schematics

VEF Spidola 10; VEF Radio Works (ID = 104209) Radio — VEF Radio Works VEF Spidola 10 (3)

VEF Spidola 10; VEF Radio Works (ID = 104020) Radio — VEF Radio Works VEF Spidola 10 (1)
Kaunas, Lithuania

VEF Spidola 10; VEF Radio Works (ID = 104009) Radio — VEF Radio Works VEF Spidola 10 (1)

VEF Spidola 10; VEF Radio Works (ID = 104021) Radio — VEF Radio Works VEF Spidola 10 (1)
Kaunas, Lithuania

VEF Spidola 10; VEF Radio Works (ID = 836137) Radio — VEF Radio Works VEF Spidola 10 (1)
Lettland, VEF, Riga, Bj. 1966

VEF Spidola 10; VEF Radio Works (ID = 838394) Radio — VEF Radio Works VEF Spidola 10 (1)

VEF Spidola 10; VEF Radio Works (ID = 838526) Radio — VEF Radio Works VEF Spidola 10 (1)

VEF Spidola 10; VEF Radio Works (ID = 1177604) Radio — VEF Radio Works VEF Spidola 10 (1)
Kaunas Lithuania

VEF Spidola 10; VEF Radio Works (ID = 1177607) Radio — VEF Radio Works VEF Spidola 10 (1)
Kaunas Lithuania

VEF Spidola 10; VEF Radio Works (ID = 1177608) Radio — VEF Radio Works VEF Spidola 10 (1)
Kaunas Lithuania

VEF Spidola 10; VEF Radio Works (ID = 1177611) Radio — VEF Radio Works VEF Spidola 10 (1)
Kaunas Lithuania

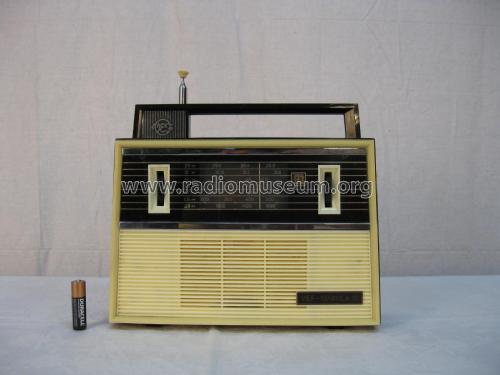

VEF Spidola 10; VEF Radio Works (ID = 1803486) Radio — VEF Radio Works VEF Spidola 10 (1)

VEF Spidola 10; VEF Radio Works (ID = 2009245) Radio — VEF Radio Works VEF Spidola 10 (1)

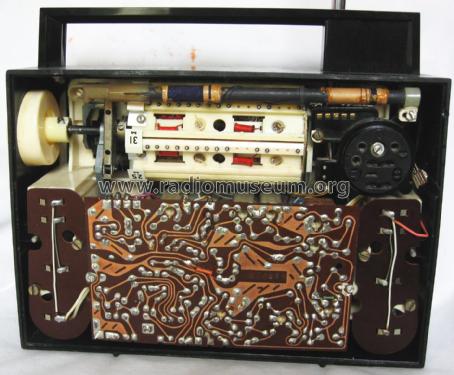

VEF Spidola 10; VEF Radio Works (ID = 2009246) Radio — VEF Radio Works VEF Spidola 10 (1)

VEF Spidola 10; VEF Radio Works (ID = 2009247) Radio — VEF Radio Works VEF Spidola 10 (1)

VEF Spidola 10; VEF Radio Works (ID = 2887301) Radio — VEF Radio Works VEF Spidola 10 (2)
Source: advert.

VEF Spidola 10; VEF Radio Works (ID = 3093475) Radio — VEF Radio Works VEF Spidola 10 (1)

VEF Spidola 10; VEF Radio Works (ID = 3093476) Radio — VEF Radio Works VEF Spidola 10 (1)

VEF Spidola 10; VEF Radio Works (ID = 3093477) Radio — VEF Radio Works VEF Spidola 10 (1)

VEF Spidola 10; VEF Radio Works (ID = 3093478) Radio — VEF Radio Works VEF Spidola 10 (1)

VEF Spidola 10; VEF Radio Works (ID = 3093479) Radio — VEF Radio Works VEF Spidola 10 (1)

VEF Spidola 10; VEF Radio Works (ID = 3093480) Radio — VEF Radio Works VEF Spidola 10 (1)

VEF Spidola 10; VEF Radio Works (ID = 3093481) Radio — VEF Radio Works VEF Spidola 10 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
10

Semiconductors
П423 П423 П41 П41 П41 П41 П41 П41 П41 П41

Main principle
Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s)

Tuned circuits
7 AM circuit(s)

Wave bands
Broadcast, Long Wave and more than two Short Wave bands.

Power type and voltage
Dry Batteries / size D 6x1,5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

Power out
1 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: VEF Spidola 10 - VEF Radio Works Valst

Shape
Portable set > 8 inch (also usable without mains)

Dimensions (WHD)
280 x 230 x 96 mm / 11 x 9.1 x 3.8 inch

Notes
Bands: LW, MW, five SW (25, 31, 41, 49, 52-75 m)

Net weight (2.2 lb = 1 kg)
2.4 kg / 5 lb 4.6 oz (5.286 lb)

Source of data
-- Schematic

Author
Model page created by Nikolaj Baranov. See "Data change" for further contributors.
