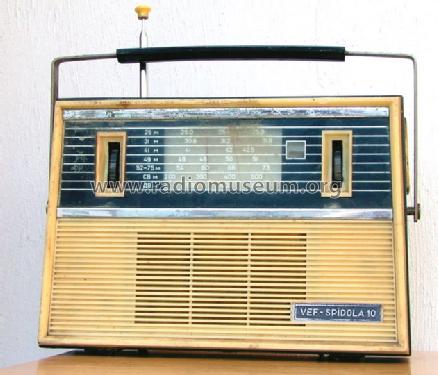

VEF Spidola 10 First model
VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
- Country
- Latvia (Latvia, Riga)
- Manufacturer / Brand
- VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
- Year
- 1965
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 239280
Kaunas Lithuania
Kaunas Lithuania
Kaunas Lithuania
Kaunas Lithuania
Thanks for Nikolaj Baranov, Riga, Latvia
- Number of Transistors
- 10
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Dry Batteries / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: VEF Spidola 10 [First model] - VEF Radio Works Valst
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 280 x 230 x 96 mm / 11 x 9.1 x 3.8 inch
- Notes
-
First VEF Spidola 10, with a different handle compared to the later model VEF Spidola 10.
Bands: LW, MW, five SW (25, 31, 41, 49, 52-75 m)
- Net weight (2.2 lb = 1 kg)
- 2.4 kg / 5 lb 4.6 oz (5.286 lb)
- Literature/Schematics (2)
- -- Original-techn. papers.
- Author
- Model page created by Zenonas Langaitis. See "Data change" for further contributors.
