• Country
• Latvia (Latvia, Riga)

• Manufacturer / Brand
• VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82542

• Number of Tubes
• 5

• Valves / Tubes
• AK2 AF7 AB2 AL1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

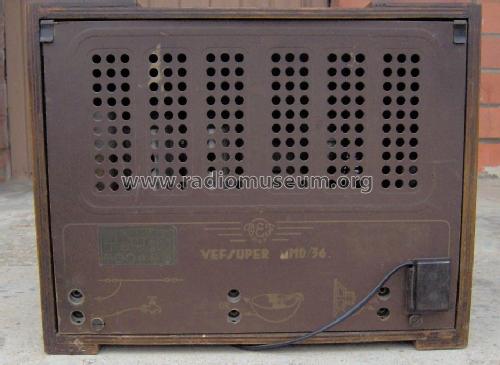

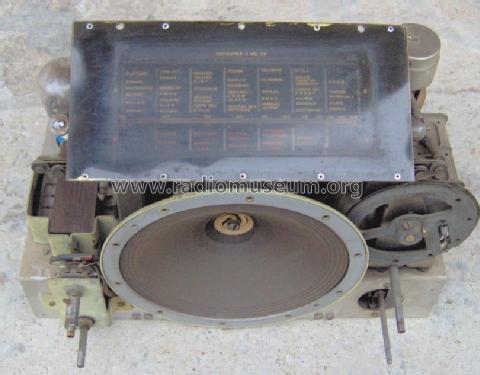

• Model: VEF Super 3MD/36 - VEF Radio Works Valst

• Shape
• Tablemodel, with any shape - general.
