VEF Super M557 SW 25 - 75 m
VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
- Country
- Latvia (Latvia, Riga)
- Manufacturer / Brand
- VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 204398

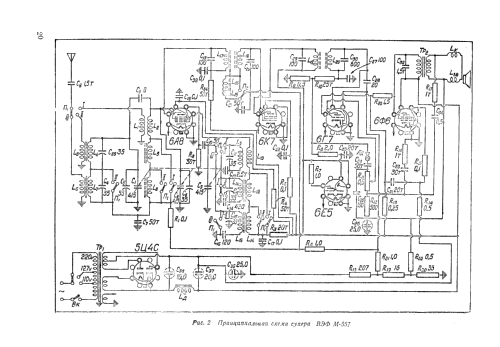

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: VEF Super M557 [SW 25 - 75 m] - VEF Radio Works Valst
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 480 x 315 x 250 mm / 18.9 x 12.4 x 9.8 inch
- Notes
-
First VEF super M557 model variant coverage SW 16-50 m. (see here).
This later M557 variant produced only with SW 25 - 75 m, other notes on dial scale and some small schemat diferencies.In all SU radios after 1950, SW band starts only from 25 meters.
- Net weight (2.2 lb = 1 kg)
- 10.4 kg / 22 lb 14.5 oz (22.907 lb)
- Mentioned in
- -- Schematic
- Author
- Model page created by Zenonas Langaitis. See "Data change" for further contributors.
