Latvia (Latvia, Riga)

Manufacturer / Brand
VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

Year
1962

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
76030

Schematics

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 95766) Radio — VEF Radio Works VEF Transistor - Tranzistors (3)

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 2222369) Radio — VEF Radio Works VEF Transistor - Tranzistors (1)

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 2222370) Radio — VEF Radio Works VEF Transistor - Tranzistors (1)

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 95768) Radio — VEF Radio Works VEF Transistor - Tranzistors (1)
Kaunas, Lithuania

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 198558) Radio — VEF Radio Works VEF Transistor - Tranzistors (1)

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 227735) Radio — VEF Radio Works VEF Transistor - Tranzistors (1)

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 227806) Radio — VEF Radio Works VEF Transistor - Tranzistors (1)

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 757877) Radio — VEF Radio Works VEF Transistor - Tranzistors (1)

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 757880) Radio — VEF Radio Works VEF Transistor - Tranzistors (1)

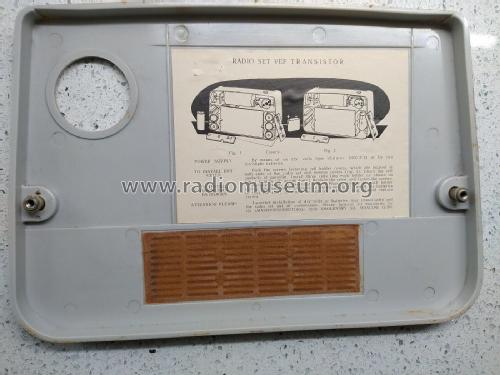

The back cover of the VEF Transistor radio

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 2821812) Radio — VEF Radio Works VEF Transistor - Tranzistors (1)

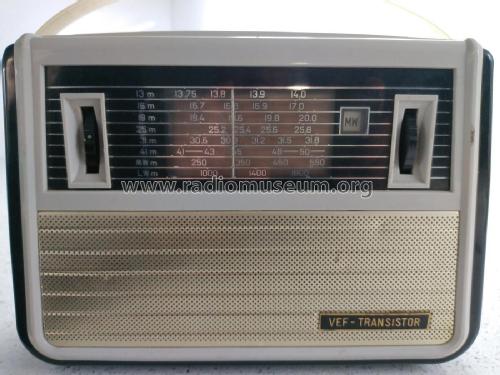

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 2869799) Radio — VEF Radio Works VEF Transistor - Tranzistors (2)
eBay item number:175592660547

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 2869800) Radio — VEF Radio Works VEF Transistor - Tranzistors (2)
eBay item number:175592660547

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 2869801) Radio — VEF Radio Works VEF Transistor - Tranzistors (2)
eBay item number:175592660547

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 2869802) Radio — VEF Radio Works VEF Transistor - Tranzistors (2)
eBay item number:175592660547

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 2869803) Radio — VEF Radio Works VEF Transistor - Tranzistors (2)
eBay item number:175592660547

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 2869804) Radio — VEF Radio Works VEF Transistor - Tranzistors (2)
eBay item number:175592660547

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 2869805) Radio — VEF Radio Works VEF Transistor - Tranzistors (2)
eBay item number:175592660547

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 2869806) Radio — VEF Radio Works VEF Transistor - Tranzistors (2)
eBay item number:175592660547

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 2869807) Radio — VEF Radio Works VEF Transistor - Tranzistors (2)
eBay item number:175592660547

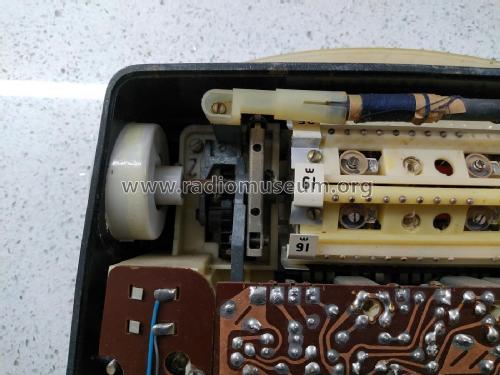

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 2869808) Radio — VEF Radio Works VEF Transistor - Tranzistors (2)
eBay item number:175592660547

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 3092857) Radio — VEF Radio Works VEF Transistor - Tranzistors (1)

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 3092858) Radio — VEF Radio Works VEF Transistor - Tranzistors (1)

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 3092859) Radio — VEF Radio Works VEF Transistor - Tranzistors (1)

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 3092860) Radio — VEF Radio Works VEF Transistor - Tranzistors (1)

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 3092861) Radio — VEF Radio Works VEF Transistor - Tranzistors (1)

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 3092862) Radio — VEF Radio Works VEF Transistor - Tranzistors (1)

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 3092863) Radio — VEF Radio Works VEF Transistor - Tranzistors (2)
VEF Transistor Advertising magazine page

VEF Transistor - Tranzistors ; VEF Radio Works (ID = 3092864) Radio — VEF Radio Works VEF Transistor - Tranzistors (2)
VEF Transistor Advertising picture

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
10

Semiconductors

Main principle
Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s)

Tuned circuits
7 AM circuit(s)

Wave bands
Broadcast, Long Wave and more than two Short Wave bands.

Power type and voltage
Dry Batteries / 2x4.5 or 6x1.5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Power out
1 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: VEF Transistor - Tranzistors [export] - VEF Radio Works Valst

Shape
Portable set > 8 inch (also usable without mains)

Dimensions (WHD)
275 x 197 x 90 mm / 10.8 x 7.8 x 3.5 inch

Notes
VEF-Transistor/ VEF-Tranzistors;
Turret tuner, six shortwave ranges (13, 16, 19, 25, 31 and 41-50 meters).
This set was exported from SU to western countries (UK proven) and probably also to GDR.
Curved case with flexible hinged carrying handle.
Both versions - at the front side labeled "VEF Transistors" as well as "VEF-Tranzistors" are labeled inside as "VEF-Transistor" with english written texture and similar coverage.
In the UK you will find at present three different labeled versions of this set: VEF-Tranzistors, VEF-Transistors & Convair 1.

Net weight (2.2 lb = 1 kg)
2.2 kg / 4 lb 13.5 oz (4.846 lb)

Price in first year of sale
75.00 SUR

Author
Model page created by Zenonas Langaitis. See "Data change" for further contributors.
