• Country
• Latvia (Latvia, Riga)

• Manufacturer / Brand
• VEF Radio Works (Valst Elektrotechniska Fabrika, ВЕФ); Riga

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 132658

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• AF7 AL1 AZ1

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 120-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

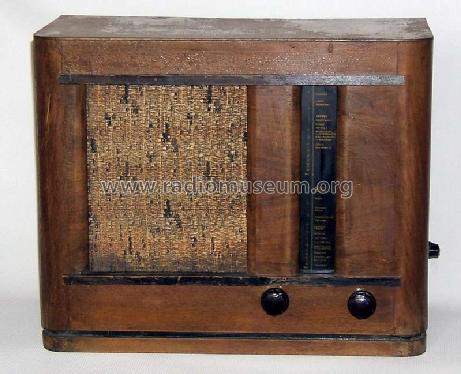

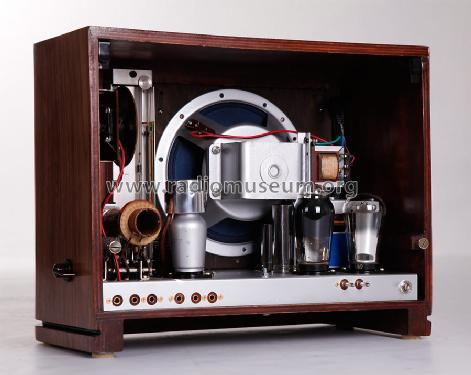

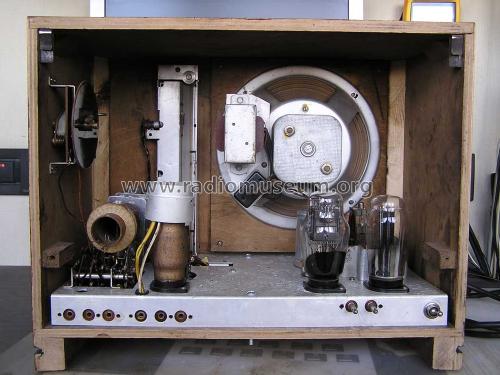

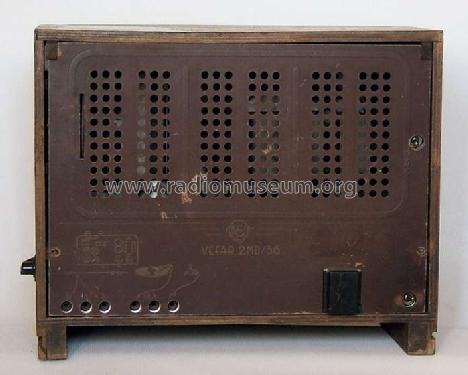

• Model: Vefar 2MD/36 - VEF Radio Works Valst

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 410 x 330 x 210 mm / 16.1 x 13 x 8.3 inch

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Mentioned in
• - - Data from my own collection

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
