- Country
- Italy
- Manufacturer / Brand
- Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI)
- Year
- 1955/1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 118644

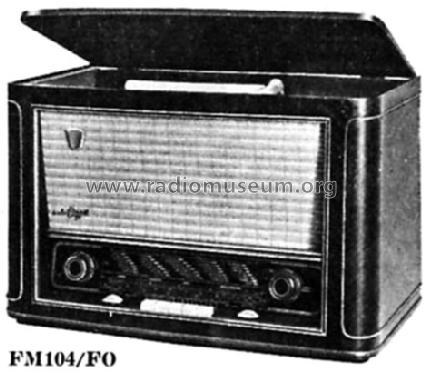

Vega FM104/FO.
Catalogo ANIE 1955-56

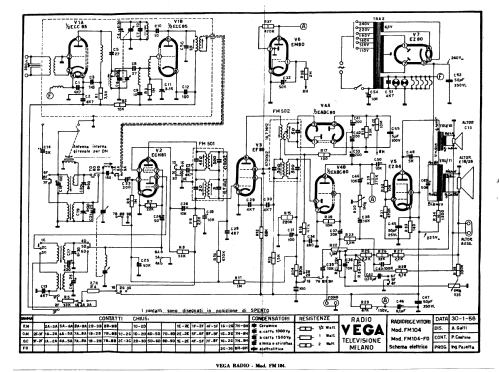

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 4.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: FM104/FO - Vega, BP Radio, Brionvega,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 580 x 380 x 305 mm / 22.8 x 15 x 12 inch
- Notes
- Giradischi 3 velocità. 1 altoparlante magnetodinamico ellittico 180 x 260 mm, 1 altoparlante magnetodinamico Ø 130 mm.
- Net weight (2.2 lb = 1 kg)
- 13.5 kg / 29 lb 11.8 oz (29.736 lb)
- Price in first year of sale
- 89,600.00 ITL
- Source of data
- Guida Pratica Antique Radio (1) 1999
- Mentioned in
- Catalogo ANIE (1955-56)
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
