Helios 20" Modello con gruppi UHF e VHF separati.
Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI)
- Country
- Italy
- Manufacturer / Brand
- Vega, BP Radio, Brionvega, Brion & Pajetta; Milano, Lissone (MI)
- Year
- 1970 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 271229
- Number of Tubes
- 6
- Number of Transistors
- 17
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Various materials
- from Radiomuseum.org
- Model: Helios 20" [Modello con gruppi UHF e VHF separati.] - Vega, BP Radio, Brionvega,
- Shape

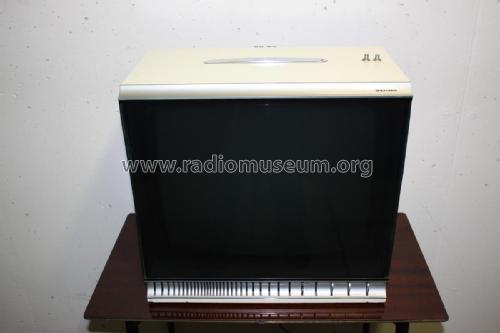

- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 480 x 460 x 350 mm / 18.9 x 18.1 x 13.8 inch
- Notes
-
Soprammobile in legno laccato bianco di grandi dimensioni.
Separated 10 channel VHF (Italian bands) and UHF tuner.
See also Vega Helios 20" vr with diode tuned combined VHF/UHF tuner.
- Author
- Model page created by Alessandro Ceretta. See "Data change" for further contributors.
