• Year
  • 1972 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 279991

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

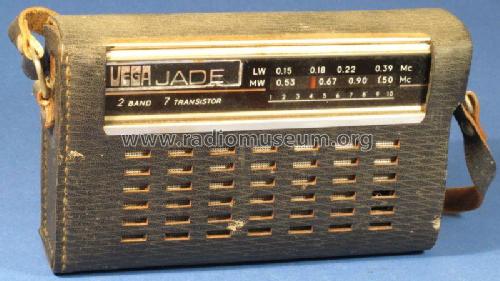

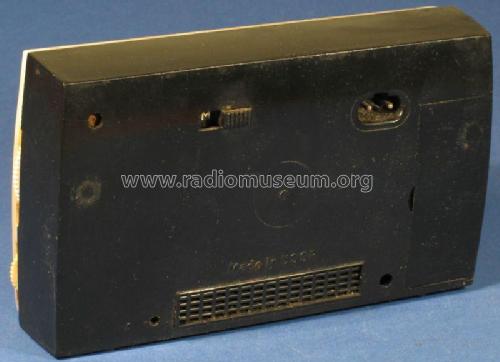

  • Model: Jade - Vega brand, Technical and
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Notes
  • Supplied with a leather carry case, 9 volt rechargable battery and mains powered battery charger. Headphone jack and socket for external antenna. Export version of the Sokol - Сокол 403

  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
