• Country
• Italy

• Manufacturer / Brand
• Vertola Radio; Milano

• Year
• 1953 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 338708

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 6BE6 6AT6 6AQ5 EZ90

• Main principle
• Superheterodyne (common); ZF/IF 467 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

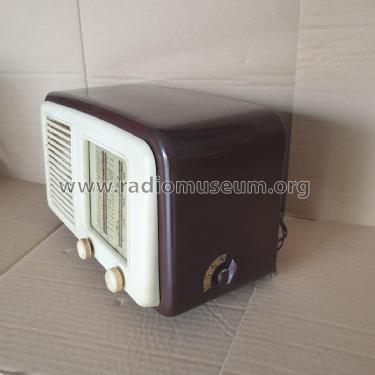

• Model: Uno [valvole miniatura] - Vertola Radio; Milano

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 330 x 195 x 150 mm / 13 x 7.7 x 5.9 inch

• Notes

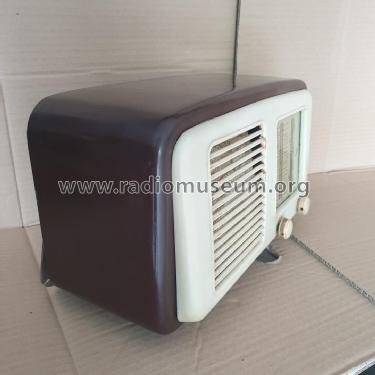

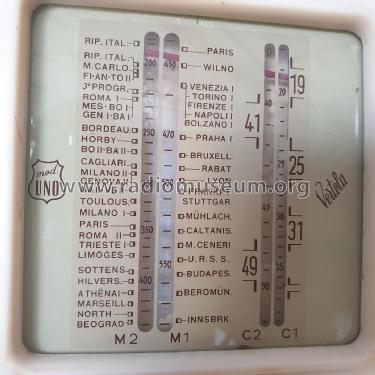

• 4 gamme d'onda: due medie e due corte. Mobiletto bicolore.

  Vedi anche il modello Uno con valvole ottali.

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
