• Country
• Spain

• Manufacturer / Brand
• Vica (Talleres), Capdevila; Barcelona

• Year
• 1947 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 330870

• Number of Tubes
• 5

• Valves / Tubes
• ECH3 EF9 EBC3 EBL1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm

• Material
• Wooden case

• from Radiomuseum.org

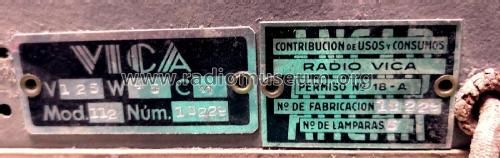

• Model: 112 - Vica Talleres, Capdevila;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 345 x 235 x 200 mm / 13.6 x 9.3 x 7.9 inch

• Net weight (2.2 lb = 1 kg)
• 7.2 kg / 15 lb 13.7 oz (15.859 lb)

• Author
• Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
