- Country
- Spain
- Manufacturer / Brand
- Vica (Talleres), Capdevila; Barcelona
- Year
- 1950 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 344123
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org

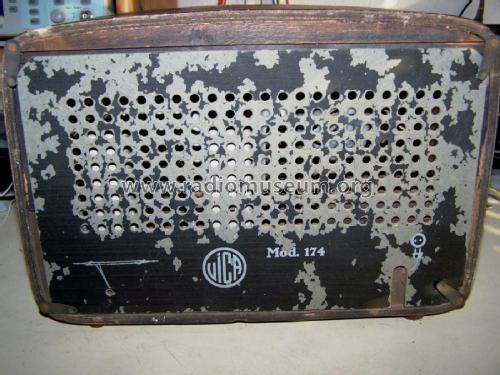

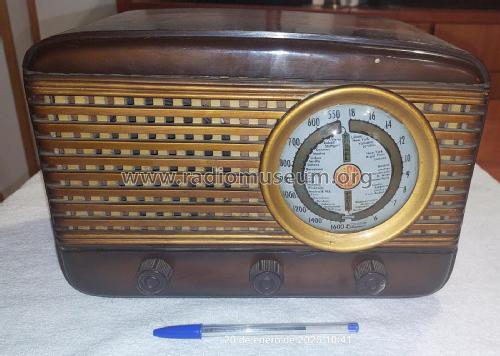

- Model: 174 - Vica Talleres, Capdevila;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 310 x 215 x 175 mm / 12.2 x 8.5 x 6.9 inch
- Notes
-

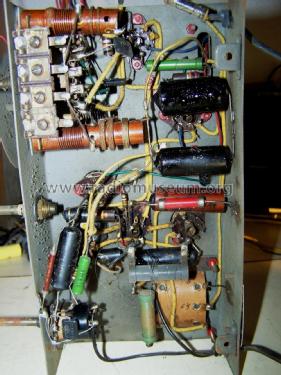

Receptor con lámparas de filamento en serie, y autotransformador con salidas de 6V3 (para el dial), 115V (para los filamentos), 125V y 230V (para alta tensión).
El 0V está conectado al chasis.
Lampes filements en serie, mais avec un autotransformateur avec sorties 6V3 (pour le dial), 115V (pour les filements), 125V et 230V (pour haute tension).
Le 0V est brache au chassis
- Author
- Model page created by Victor Boj Cabistañ. See "Data change" for further contributors.
