- Country
- Spain
- Manufacturer / Brand
- Vica (Talleres), Capdevila; Barcelona
- Year
- 1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 325645
todocoleccion.net 99536735 tintoyer
- Number of Tubes
- 5
- Valves / Tubes
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 110-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 202 - Vica Talleres, Capdevila;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 280 x 180 x 160 mm / 11 x 7.1 x 6.3 inch
- Notes
-
Talleres Vica, modelo 202
- Price in first year of sale
- 1,736.65 Pts
- Mentioned in

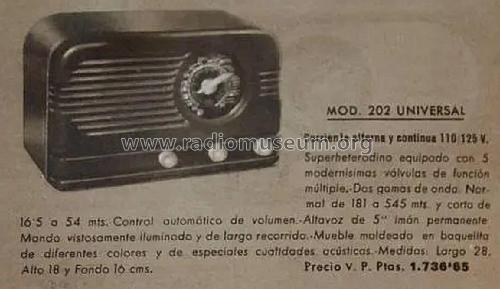

- Catálogo Vica 1954
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
