• Country
• Spain

• Manufacturer / Brand
• Vica (Talleres), Capdevila; Barcelona

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 325643

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 240 - Vica Talleres, Capdevila;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 320 x 220 x 190 mm / 12.6 x 8.7 x 7.5 inch

• Notes

• Talleres Vica, modelo 240





• Price in first year of sale
• 1,762.95 Pts

• Mentioned in

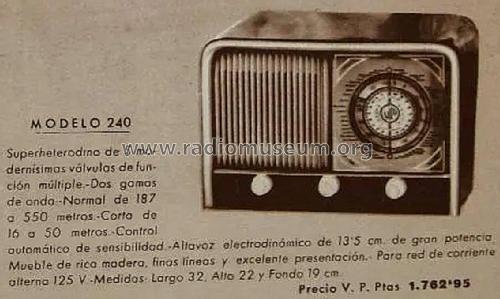

• Catálogo Vica 1954

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
