- Country
- Spain
- Manufacturer / Brand
- Vica (Talleres), Capdevila; Barcelona
- Year
- 1963 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 315391

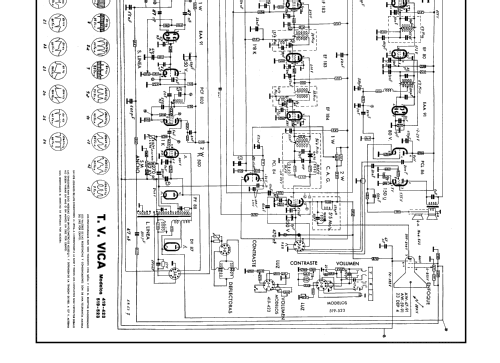

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- PCC189 PCF86 EF183 EF183 EF184 PCL84 PCL85 ECH84 EAA91 PCF802 PL500 PY88 DY87 EF80 EF80 EAA91 PCL86 AW59-91 or 23DEP4
- Number of Transistors
- Main principle
- Superhet with RF-stage; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 125 Volt
- Loudspeaker
- 2 Loudspeakers
- from Radiomuseum.org
- Model: 523 - Vica Talleres, Capdevila;
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Vica modelo 523
TV B/N 23" con selector rotativo de VHF.
Mando a distancia por cable (encendido, volumen, contraste y luz con célula en el mando)
- Mentioned in
- Esquemario TV REDE, Tomo I, 1964
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
