• Year
  • 1955 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 337496

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15.5 cm = 6.1 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: FM 75 - Vica Talleres, Capdevila;
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 490 x 335 x 320 mm / 19.3 x 13.2 x 12.6 inch
  • Notes
  • Radio de 4 bandas: OM, OC, OP, FM

    Con 4 mandos: Volumen, Sintonia, Graves, Agudos

    Altavoz dinámico, marca Melodial 1N6

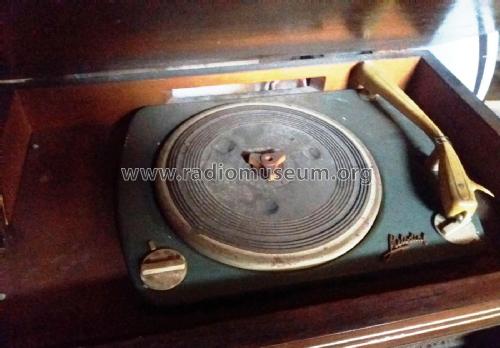

    Giradiscos Melodial 17 1059 incorporado. Velocidades: 16 - 33 - 45 - 78. Voltaje funcionamiento tocadiscos: 125V

  • Author
  • Model page created by Josh Toreno. See "Data change" for further contributors.
