Superhet

• Country
• United States of America (USA)

• Manufacturer / Brand
• Victoreen Radio Co., Walker, George W. Co

• Year
• 1928

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 64646

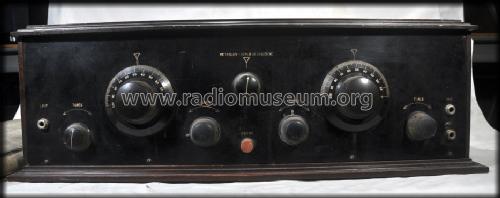

• Picture

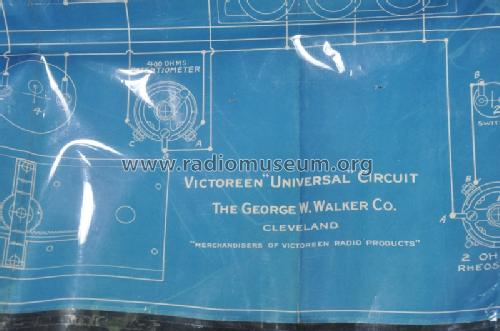

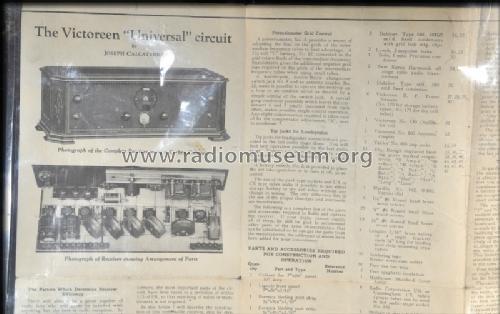

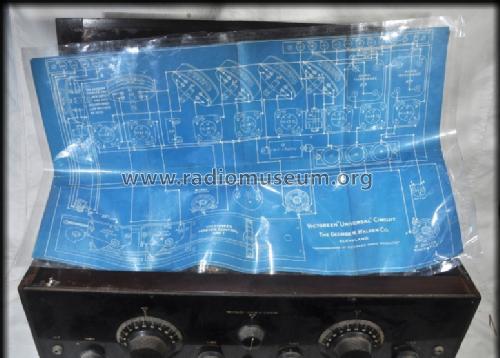

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• UV201A UV201A UV201A UV201A UV201A UV201A UV201A 112A

• Power type and voltage
• Storage and/or dry batteries / 6 & 3 x 45 & 7.5 Volt

• Material
• Wooden case

• from Radiomuseum.org
• Model: Superhet - Victoreen Radio Co., Walker,

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 26 x 7 x 10 inch / 660 x 178 x 254 mm

• Notes
• (George W. Walker Co.)

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Other Models

• Here you find 5 models, 2 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Victoreen Radio Co., Walker, George W. Co
