3-Lampe Jævnstrømmodtagere unknown

• Country
• Denmark

• Manufacturer / Brand
• Victoria (brand), Brodrene Bojsen (BBE); Esbjerg

• Year
• 1931 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 353235

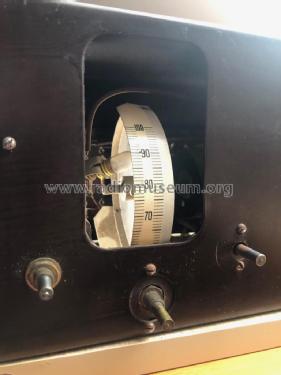

• Picture

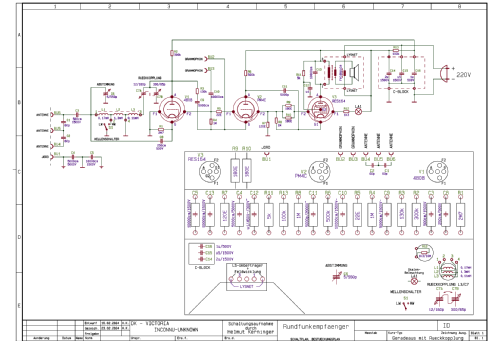

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Direct Current supply (DC) / 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org
• Model: 3-Lampe Jævnstrømmodtagere unknown - Victoria brand, Brodrene

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 450 x 205 x 230 mm / 17.7 x 8.1 x 9.1 inch

• Notes

• Dänischer 1-Kreis 3-Röhren-Empfänger für Gleichstromnetz-Betrieb. Der Hersteller Victoria ist nicht gesichert. Ein Papieretikett im Inneren trägt die Reste einer Bezeichnung *uridsen & Jensen, RIBE.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Author
• Model page created by Helmut Kerninger. See "Data change" for further contributors.

• Other Models

• Here you find 1 models, 1 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
