• Country
• United States of America (USA)

• Manufacturer / Brand
• Videola-Erie Corp, Brooklyn 1, N. Y.

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 181745

• • Brand: Fonovox

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6AQ8 6AJ8 6BY7 6T8 6BR5 6BQ5

• Main principle
• Superhet with RF-stage; ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: FonoVox The Prima Donna 7060 - Videola-Erie Corp, Brooklyn 1,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 40.5 x 30.75 x 16.25 inch / 1029 x 781 x 413 mm

• Notes
• FonoVox Console "The Prima Donna" Model 7060.
  The FonoVox console radio-phonograph player was manufactured by Continental-Rundfunk GmbH in West Germany.

• Literature/Schematics (1)

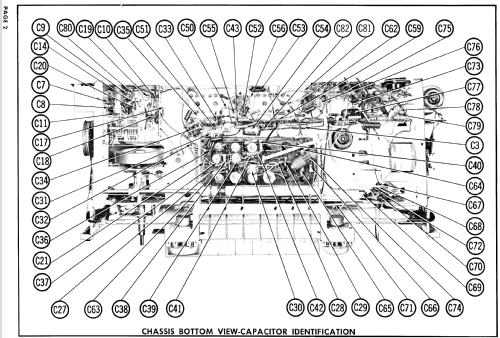

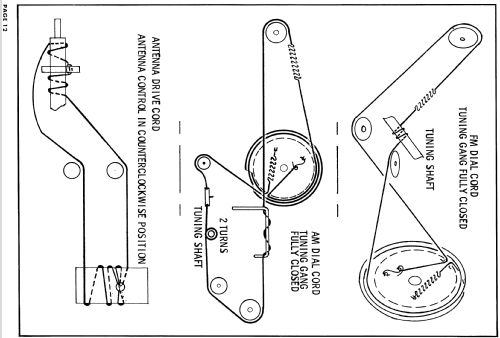

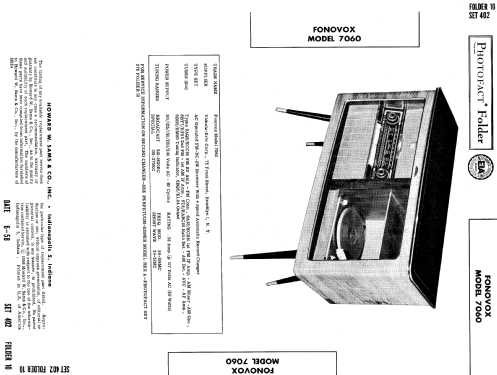

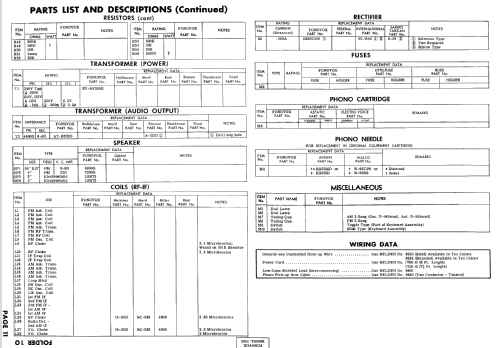

• Photofact Folder, Howard W. SAMS (Date 6-58, Set 402, Folder 10)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
