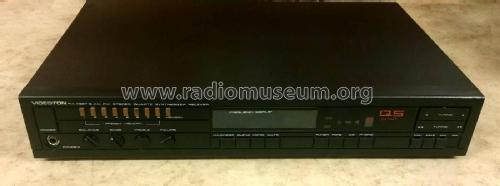

AM/FM Quartz Synthesizer Receiver RA 7387 S
Videoton; Székesfehérvár
- Country
- Hungary
- Manufacturer / Brand
- Videoton; Székesfehérvár
- Year
- 1989 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 295011
-
- Brand: VTTV
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: AM/FM Quartz Synthesizer Receiver RA 7387 S - Videoton; Székesfehérvár
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 440 x 340 x 76 mm / 17.3 x 13.4 x 3 inch
- Net weight (2.2 lb = 1 kg)
- 5.3 kg / 11 lb 10.8 oz (11.674 lb)
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
