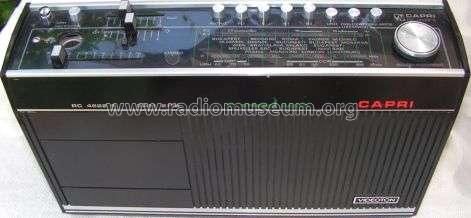

Capri RC-4622S

• Country
• Hungary

• Manufacturer / Brand
• Videoton; Székesfehérvár

• Year
• 1979

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 121518

• • Brand: VTTV

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage

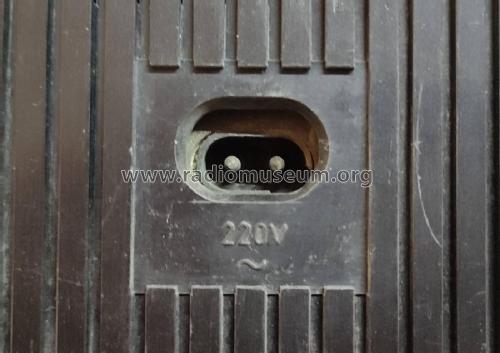

• Line / Batteries (any type) / 220; 6× 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Capri RC-4622S - Videoton; Székesfehérvár

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 345 x 200 x 92 mm / 13.6 x 7.9 x 3.6 inch

• Notes

• Stereo. 2×2,5W sin.; 2× 3W.
  FM: OIRT & CCIR
  Ext. Loudspeaker special jack: 2 (Stereo, 2×4Ω). 4 IC-s.

  Speaker type: Videoton H1320/10F

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Literature/Schematics (1)
• Magnósok Évkönyve 1982, Csabai Dániel

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
