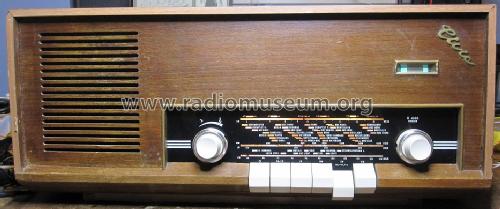

Civic R4501-111
Videoton; Székesfehérvár
- Country
- Hungary
- Manufacturer / Brand
- Videoton; Székesfehérvár
- Year
- 1968 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 229493
-
- Brand: VTTV
with permission
with permission
with permission
with permission
with permission
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); 2 AF stage(s); Export model
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Civic R4501-111 - Videoton; Székesfehérvár
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 516 x 225 x 170 mm / 20.3 x 8.9 x 6.7 inch
- Notes
-
Full wave metal rectifier.
Dial marked for UK & World Stations:
SW coverage 6 to 18Mhz,
FM coverage 88 to 108 MHz.Gram/Tape switch and input.
- Author
- Model page created by Mike Edwards † 25.10.21. See "Data change" for further contributors.
