• Country
• Hungary

• Manufacturer / Brand
• Videoton; Székesfehérvár

• Year
• 1973 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 335754

• • Brand: VTTV

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• PCF201 PCF200 PCL85 PCL86 PL500 or PL504 PY88 DY806 A44-120W

• Number of Transistors
• 7

• Semiconductors
• AF239S AF139 AF109 BC108 AF201 TAA691 TAA550 BB105

• Main principle
• Superhet with RF-stage; Export model

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Concept de Luxe TA-1252 CU - Videoton; Székesfehérvár

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 530 x 410 x 328 mm / 20.9 x 16.1 x 12.9 inch

• Notes

• Videoton Concept de Luxe ist ein 44 cm s/w Fernsehempfänger für den Export.
  Empfangsbereiche nach CCIR-Standard: VHF Band I, III, UHF Band IV/V. 7 Programmtasten (Preomat) mit Diodenabstimmung.
  FTZ-Prüfnr. AG 21061

  Halbleiter: je einmal pro Typ, teilweise nicht erfasst.

  Siehe auch Videoton Elektron 17 TA-1252

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

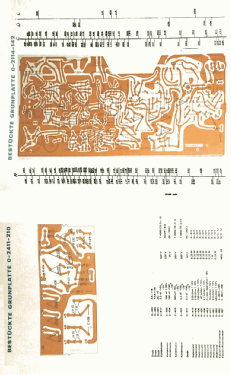

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
