Disco baby RA-4312AS
Videoton; Székesfehérvár
- Country
- Hungary
- Manufacturer / Brand
- Videoton; Székesfehérvár
- Year
- 1980 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 127281
-
- Brand: VTTV

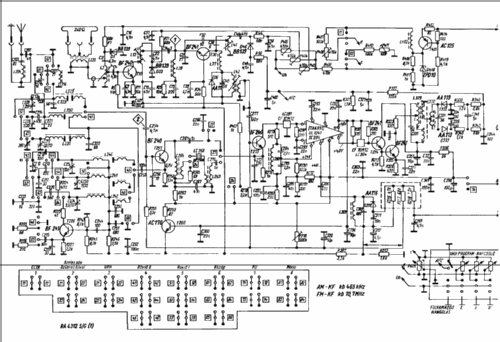

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 465/10700 kHz
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 3.5 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org

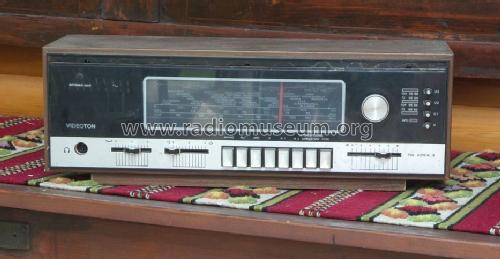

- Model: Disco baby RA-4312AS - Videoton; Székesfehérvár
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 510 x 170 x 170 mm / 20.1 x 6.7 x 6.7 inch
- Notes
- ICs: 4
FM: 66-104 MHz, Stereo.
- Net weight (2.2 lb = 1 kg)
- 5.5 kg / 12 lb 1.8 oz (12.115 lb)
- Literature/Schematics (1)
- Kókai-Varsányi: Sztereó rádiók szervízkönyve II, Budapest 1982.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
