Europa Star RM 4630

• Country
• Hungary

• Manufacturer / Brand
• Videoton; Székesfehérvár

• Year
• 1977 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 138657

• • Brand: VTTV

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage

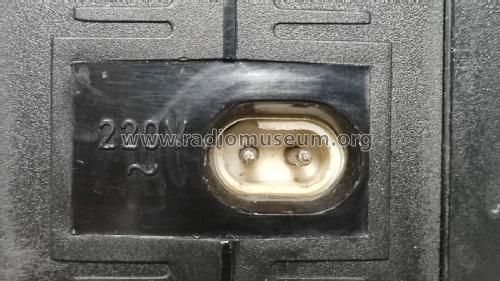

• Line / Batteries (any type) / 220/ 6 × 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Europa Star RM 4630 - Videoton; Székesfehérvár

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 350 x 230 x 85 mm / 13.8 x 9.1 x 3.3 inch

• Notes

• 2 IC-s, FM: OIRT & CCIR.
  SW 1: 49 m band, SW 2: 41 m - 16 m band

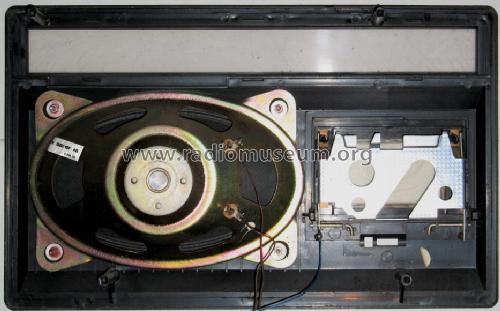

  Speaker: H1320/10F 4Ω
  Similar model: Star RM 4620.

• Net weight (2.2 lb = 1 kg)
• 3.6 kg / 7 lb 14.9 oz (7.93 lb)

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
