• Country
• Hungary

• Manufacturer / Brand
• Videoton; Székesfehérvár

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 169671

• • Brand: VTTV

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH21 UF21 UBL21 UY1N

• Main principle
• ZF/IF 450 kHz

• Wave bands
• Broadcast only (MW).

• Details
• Radio with other functions

• Power type and voltage
• AC/DC-set

• Material
• Wooden case

• from Radiomuseum.org

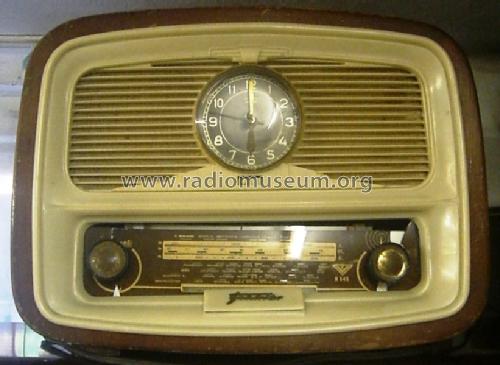

• Model: Fehérvár R-736A - Videoton; Székesfehérvár

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 310 x 240 x 170 mm / 12.2 x 9.4 x 6.7 inch

• Notes
• with built-in clock.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Price in first year of sale
• 1,030.00 HUF

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (4)
• Villamos Tömegcikk Árjegyzék, 1958.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
