Háton hordozható rádió - Portable Transceiver R-108d
Videoton; Székesfehérvár
- Country
- Hungary
- Manufacturer / Brand
- Videoton; Székesfehérvár
- Year
- 1965 ?
- Category
- Military Transceiver (TRX)
- Radiomuseum.org ID
- 353475
-
- Brand: VTTV

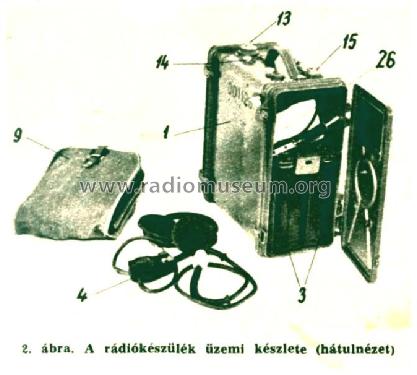

Orginal manual.
Orginal manual.
Orginal manual.
Orginal manual.
Orginal manual.
Orginal manual.
Orginal manual.
Orginal manual.
Orginal manual.
Orginal manual.
Orginal manual.
- Number of Tubes
- 11
- Valves / Tubes
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 2×2,4 Volt
- Loudspeaker
- - only for Earphone!
- Material
- Metal case
- from Radiomuseum.org
- Model: Háton hordozható rádió - Portable Transceiver R-108d - Videoton; Székesfehérvár
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 230 x 385 x 365 mm / 9.1 x 15.2 x 14.4 inch
- Notes
-
Frequency range 28-36,5MHz, powered by 2pcs batteries 2NKN24 and vibrator WS-4,8, IP65-66 sealing. Operation possible to different kind of antennas.
- Net weight (2.2 lb = 1 kg)
- 21 kg / 46 lb 4.1 oz (46.256 lb)
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
