LABE vevőkészülék R 4-1
Videoton; Székesfehérvár
- Country
- Hungary
- Manufacturer / Brand
- Videoton; Székesfehérvár
- Year
- 1961–1966
- Category
- Commercial Transmitter & Receiver (TRX not Amateur)
- Radiomuseum.org ID
- 268879
-
- Brand: VTTV
- Number of Tubes
- 13
- Main principle
- Transceiver
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 220 / 12 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

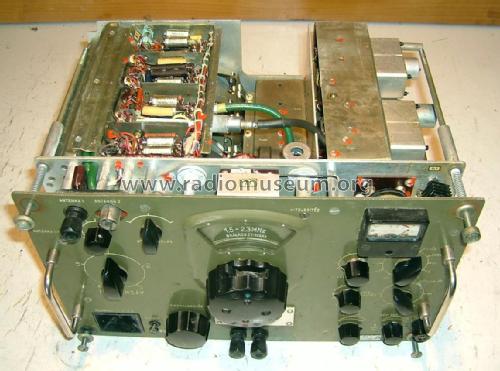

- Model: LABE vevőkészülék R 4-1 - Videoton; Székesfehérvár
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 350 x 230 x 285 mm / 13.8 x 9.1 x 11.2 inch
- Notes
-
Military Car radio.Band:1 sáv 1,5-2,3 Mhz 2 sáv 2,3-3,5 Mhz 3 sáv 3,5-5,3 Mhz 4 sáv 5,3-8,2 Mhz 5 sáv 8,2-12,5 Mhz
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
