Lido RB3604B
Videoton; Székesfehérvár
- Country
- Hungary
- Manufacturer / Brand
- Videoton; Székesfehérvár
- Year
- 1968–1971
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 109120
-
- Brand: VTTV
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Storage and/or dry batteries / 4 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.45 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Lido RB3604B - Videoton; Székesfehérvár
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 260 x 170 x 70 mm / 10.2 x 6.7 x 2.8 inch
- Notes

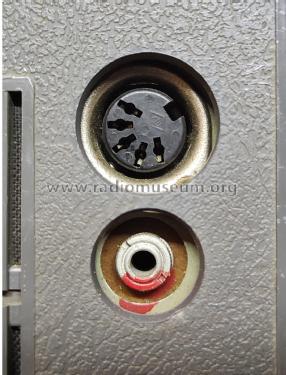

- AF106, 2× AF137, AC136, AC125, AC187, AC188. Radio hat Anschluss für Autobatterie und Antenne.
- Net weight (2.2 lb = 1 kg)
- 2 kg / 4 lb 6.5 oz (4.405 lb)
- Source of data
- Radio es Televizio Vevö keszülekek 1967-69
- Author
- Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
